Xaga Carbon Fiber

The ultimate in lightness and convenience, this LED screen's ultra-light weight reduces transportation difficulties. The modular design with quick disassembly and assembly function greatly improves the installation efficiency. Transparent and windproof, the screen optimizes the visual effect with a 45° bevel design, which is both aesthetically pleasing and practical, making it suitable for outdoor advertising, exhibitions, and other scenarios.

Q-1000

This LED floor screen focuses on practical performance: it supports quick installation and two-way front and rear maintenance, which is suitable for efficiency needs; the climbing function combined with the curved lock design can easily cope with changes in terrain and seamless splicing; the corner guard anti-knock structure strengthens durability, and the smooth corners and the locking core guarantee the precision of splicing. High-contrast images are suitable for creative scenarios, creating an efficient and reliable display solution specifically for LED flooring applications.

Q-500

Molyna

The breakthrough realizes truly smooth 90° corner, eliminating traditional splicing black lines, and the picture flows seamlessly like liquid metal. Adopting 375×500mm aviation-grade die-casting aluminum frame, it achieves the industry's top splicing flatness through precision manufacturing process. The innovative soft mask fully protects the LEDs from collision, and the magnetic hard connection module and the pluggable power box realize second-level disassembly. The side locking system is intelligently compatible with all kinds of straight cabinets, freely constructing right-angle/U-shape/totem pole/cylinder and other three-dimensional shapes, creating a borderless vision of both art and technology for high-end commercial spaces.

F-Dancer

This LED screen combines interactive experience with practical performance: the high load-bearing structure with waterproof and non-slip design is suitable for outdoor high-frequency use scenarios; the heat dissipation system ensures stable operation over a long period of time, and the installation is quick and saves labor costs. The interactive function supports real-time interaction, from commercial exhibitions to public space applications, creating an intelligent display solution with strong adaptability and reliability.

V-Poster

This Poster features a slim, easy-to-install design for flexible placement. Front maintenance ensures quick fixes. Multi-poster splicing creates seamless large walls. Wireless control via cloud/WiFi enables remote management. High-grade protective top cover resists impacts. Ideal for outdoor ads and indoor presentations, delivering reliable performance.

M-LEDnet

Architectural decorative grade LED display, both decorative and functional. It supports flexible curved surface installation, waterproof outdoor use and transparent screen body, and flexibly adapts to all kinds of architectural structures. Not only can it be perfectly integrated into the building appearance, but also can realize dynamic information display, which is the ideal display solution for modern buildings.

Trumpet

Adopting 2.5mm ultra-dense dot pitch, presenting delicate picture quality. The main structure contains 5010mm diameter horn-shaped display (25.33 square meters) and 1745mm diameter column display (22.63 square meters, height 6074mm), 8 kinds of customized modules to achieve multi-surface seamless splicing. The column design integrates sound and light technology, creating an immersive visual landmark for brand showrooms and commercial complexes.

Cone

Innovative round table shape LED screen (top diameter 2713mm/bottom diameter 2000mm/height 960mm), equipped with 2.5 dot pitch and 1.3 million pixels resolution. Three kinds of customized modules realize 140°-180° ultra-wide viewing angle coverage, suitable for column-shaped space art display. Curved seamless splicing technology ensures 360° viewing without dead angle, designed for high-end commercial atriums and immersive showrooms.

Hexagon

Inspired by honeycomb, the ultra-thin frameless units are free to combine multi-dimensional art installations. Support magnetic rotation splicing to create dome/prism/infinite extension wall. High brightness and wide viewing angle coverage. From art galleries to commercial landmarks, reconfigure the geometric narrative of light and shadow.

Obsira

This LED display features a lightweight, ultra-thin design for easy transport/installation and space saving. With a safe, solid structure and excellent heat dissipation, it ensures long-term stable operation. Quick assembly/disassembly boosts deployment efficiency, while an adjustable bracket meets diverse viewing needs. High-contrast, high-brightness visuals offer clear, colorful images with energy-saving features. Supporting HD detail display, it suits sports events, large-scale activities, venue guidance, and training scenarios.

Product model	CFI1	CFI2	CFI3	CFLI3	CFL3	CFL4	CFTL5	CFTL10
Pixel pitch(mm)	1.95	2.604	3.91	3.91	3.91	4.81	5.68	10.4
Module size(mm)	500×250	500×250	500×250	500×250	500×250	500×250	500×250	500×250
Module resolution(dot)	256 x128	192 x 96	128x 64	128 x64	128×64	104×52	88×44	48×24
Module assembly	1×2	1×2	1×2	1×4	1×4	1×4	1×4	1×4

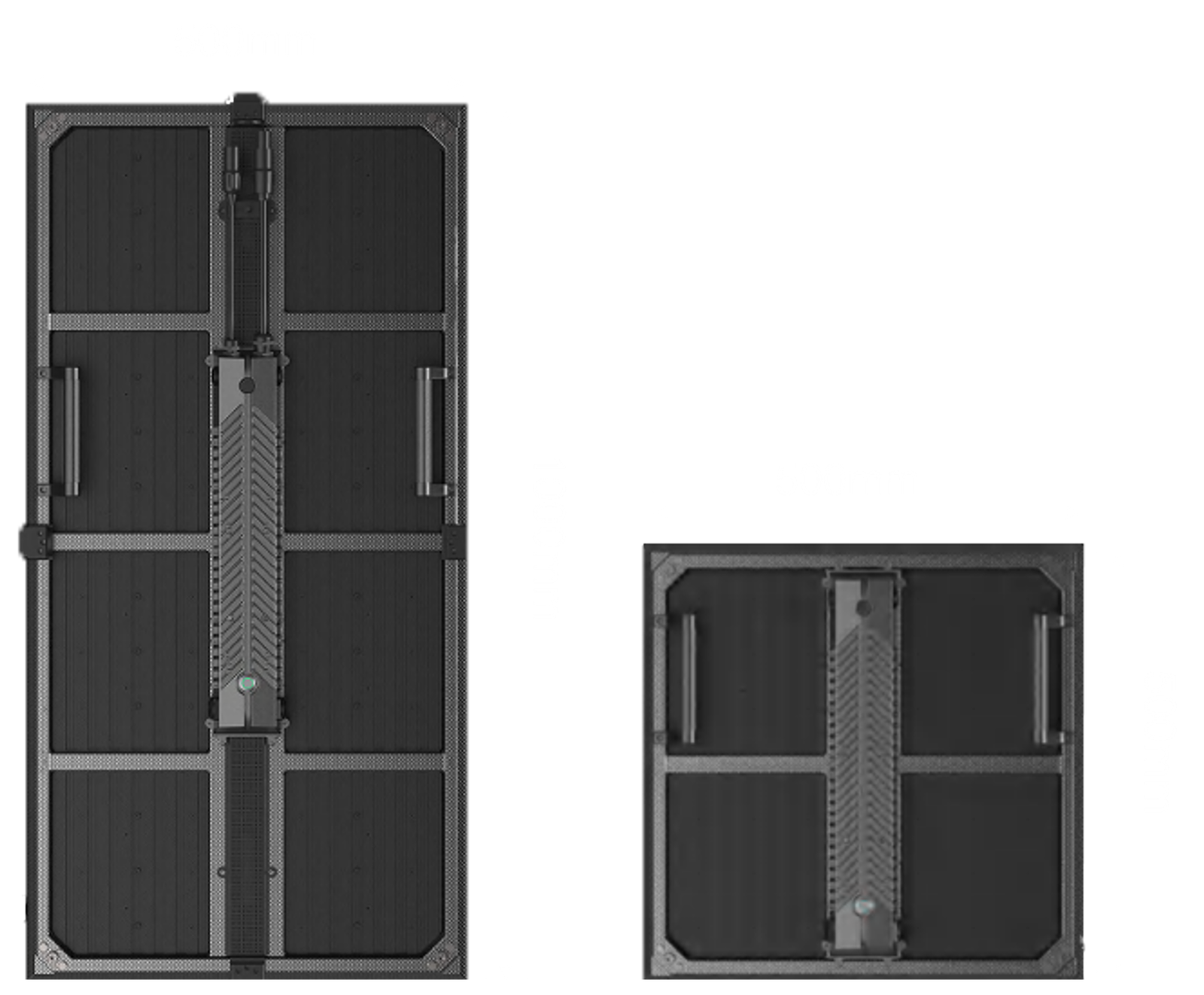

Panel size(mm)	500×500	500×500	500×500	500×1000	500×1000	500×1000	500×1000	500×1000
Panel resolution(dot)	256 x256	192 x 192	128×128	128 x 256	128×256	104×208	88×176	48×96
LED type	SMD 2195-8	SMD 1515	SMD 2020	SMD 2020	SMD 1415	SMD 1921	SMD 1921	SMD 3535
Brightness(cd/m²)	1000	≥800			4500	5000
Contrast ratio	10000：1		5000：1
Support input	Composite,S-Vido,Component,VGA,DVI,HDM,HD_SDI
Horizontal viewing angle	160°
Vertical viewing angle	160°
Gray level(bit)	22	16
Refresh rate	≥7680Hz
Max. AC power consumption	≤650W/m²	≤660W/m²			≤700W/m²
Avg. AC power consumption	≤280W/m²	≤195W/m²			≤250W/m²
Input voltage	100-240 VAC,50~60 Hz
Operate temperature	-30°C~+50°C
Storage temperature	-40~+80°C
Operating humidity	10~90% RH
Protection grade	IP30				IP65
Working environment	Indoor				Outdoor
Cabinet material	Carton fiber
LED lifetime(hours)	100,000
Weight(kg/m2）	16	16	16	13	14		12

Ultra-light & Quick-mount Carbon Fiber Screens

Super Light Weight

Transparent & Windproof

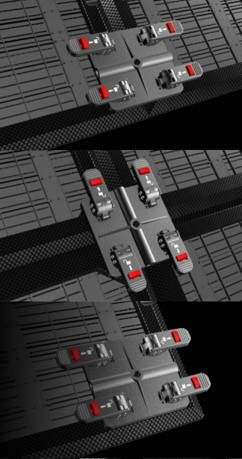

Quick Disassembly & Assembly

Bevel edge design

Modular Design

Download XAGA Brochure

Specs

XAGA Key Features

Super Light Weight

Transparent, Windproof

Quick disassembly and assembly

Bevel edge design

Modular design

Application fields

● Concerts

● TV stations

● Large-scale entertainment programs

● Commercial exhibitions

● Studios
