XAGA
Xaga’s ultra-light weight reduces transportation difficulties. The modular design with quick disassembly and assembly function greatly improves the installation efficiency. Transparent and windproof, the screen optimizes the visual effect with a 45° bevel design, which is both aesthetically pleasing and practical, making it suitable for outdoor advertising, exhibitions, and other scenarios.
Ultra-light & Quick-mount Carbon Fiber Screens
Super Light Weight
This LED screen is made of carbon fiber, a material that is not only lightweight but also strong and durable. Its low weight of only 14kg/sqm makes it easy to handle and deploy during installation.
Transparent & Windproof
The hollow design of the LED screen cleverly utilizes the principle of aerodynamics, enabling the screen to effectively achieve air convection in the outdoor environment, thus greatly reducing the impact of strong winds when used outdoors.
Quick Disassembly & Assembly
This product features a unique and patented Quick Release Lock technology. This feature simplifies user operation and greatly reduces the time required for assembly and disassembly, making the process both fast and efficient. Whether in everyday use or in an emergency, this feature ensures that you can quickly deploy or evacuate your gear, enhancing user convenience and comfort.

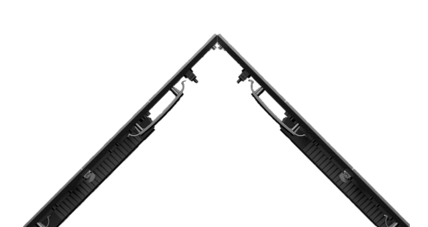

45° Bevel Design
This LED screen is capable of achieving a minimum splicing angle of 90°. This feature allows the screen to be flexibly integrated into a variety of spatial layouts, maintaining a high degree of stability and visual effect. In addition, the screen can also be spliced into cubes, providing more possibilities for creative displays. These cubes can not only display images independently, but can also be connected to each other to create a more impressive dynamic picture.

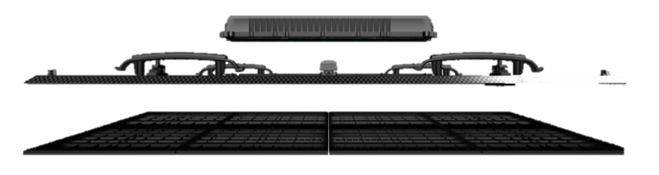

Modular Design
This LED screen consists of three core components: an independent power box to ensure the stability of the power supply for a short period of time in the event of a sudden power failure; the use of high-strength carbon fiber to create a strong frame, the screen to play a certain role in the protection, to extend the service life of the screen; integrated with all the necessary components of the LED module, so that the LED screen in general seems to be simple and generous.
Download XAGA Brochure
Specs
| Item | P3.9 | P4.8 | P5.68 |
| Pixel Pitch | 3.9mm | 4.8mm | 5.68mm |
| Module Size | 500*250mm | 500*250mm | 500*250mm |
| Cabinet Size | 500*500/500*1000mm | 500*500/500*1000mm | 500*500/500*1000mm |
| LED Type | SMD1921, 3 in 1 | SMD1921, 3 in 1 | SMD1921, 3 in 1 |
| Scan Mode | 1/16 | 1/13 | 1/8 |
| Cabinet Material | Carbon Fiber | ||
| Cabinet Weight | 12kg/m² | ||
| Brightness | >5000nits | ||
| Power Consumption | 730/256w/m² | ||
| Maintenance | Rear Service | ||
| IP Rating | IP65 | ||
| Refresh Rate | ≥3840Hz | ||
| Viewing Angle | H:140°; V:140° | ||
| Operational Temp | ﹣20~50℃ | ||
| Operational Humidity: | 10%~90%RH | ||
XAGA Key Features
Super Light Weight
Quick Disassembly & Assembly
Modular Design
45° Bevel Design
Modular Design

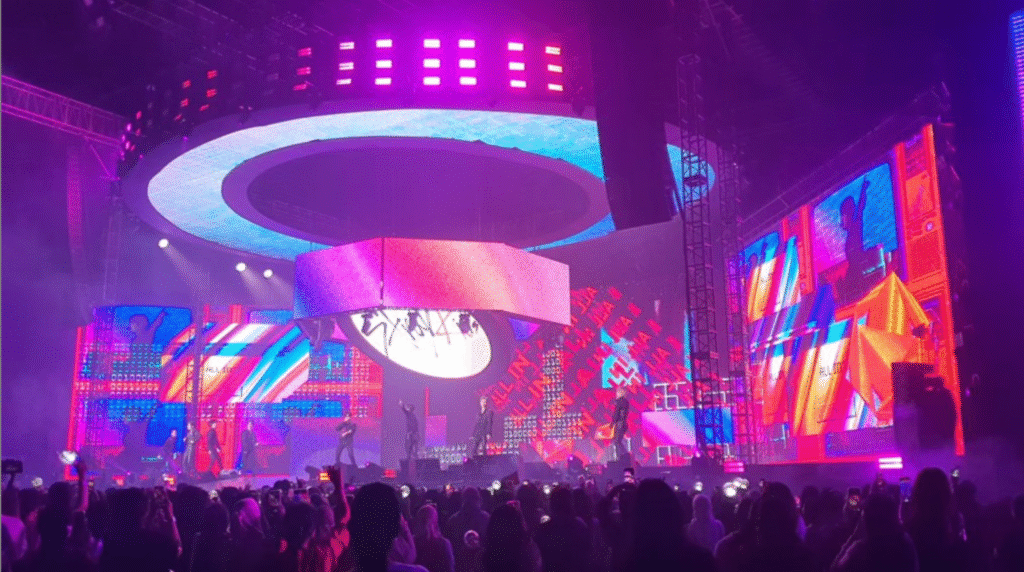

Application fields
● Concerts
● TV stations
● Large-scale entertainment programs
● Commercial exhibitions
● Studios
