VW2
The VW2 led video controller is a professional video processing and control device featuring a pure hardware FPGA design architecture. All boards are modular in design and offer a comprehensive range of input and output interfaces, allowing for flexible configuration of input and output boards to meet diverse project requirements. It is widely used in television stations, dispatch rooms,command centers, exhibition halls, conference rooms, stage performances, data centers, and multi-purpose halls.
Features
• 2U chassis with flexible expansion and super load capacity
– A single card supports 8-channel 2K@60Hz input.
– The single board supports 2-channel 4K@60H z input and supports input of up to 8K × 2K@60Hz .
– The single-board card supports 8 network port outputs and a maximum load of 5.2 million pixels.
– The whole machine supports 24- channel 2K@60Hz input and 32channel network output at the same time, with a maximum load of 23 million pixels.
– The single board supports 2-channel 4K@60H z input and supports input of up to 8K × 2K@60Hz .
– The single-board card supports 8 network port outputs and a maximum load of 5.2 million pixels.
– The whole machine supports 24- channel 2K@60Hz input and 32channel network output at the same time, with a maximum load of 23 million pixels.
• 8K input, massive layers
– Single channel supports DP1.4 input , with a maximum resolution of 8K 4K @30Hz .
– A single card supports a maximum of 16 2K @60Hz layers, 8 4K @30Hz layers, or 4 4K @60Hz layers.
– A single machine supports up to 16 2K layers.
– Equipped with a front-mounted touch LCD control panel, allowing quick selection of input signal sources such as HDMI and DisplayPort.
– A single card supports a maximum of 16 2K @60Hz layers, 8 4K @30Hz layers, or 4 4K @60Hz layers.
– A single machine supports up to 16 2K layers.
– Equipped with a front-mounted touch LCD control panel, allowing quick selection of input signal sources such as HDMI and DisplayPort.
• Innovative architecture, layer sharing
– Unique hardware architecture design builds a layer resource pool for the entire machine , enabling layer resource sharing across the entire machine .
• Web control, convenient and fast
– No software installation is required, it uses web -based control and is not restricted by operating systems or platforms.
– The operation is simple and fast, with real-time response and easy configuration of complex scenarios.
– Real-time preview function can be realized without the need for an external monitoring board
– The operation is simple and fast, with real-time response and easy configuration of complex scenarios.
– Real-time preview function can be realized without the need for an external monitoring board
• Multiple management methods , easy management
– Scene Management: Different preset parameters can be saved as scenes, supporting one-click call of single-screen and multi-screen scenes for easy switching.
– Group screen management: Supports management of up to 8 groups of screens, and each group of screens can customize the output resolution, making it easy to complete complex scene display control.
– Supports automatic brightness adjustment based on ambient light conditions, or manual adjustment according to presentation content requirements.
– Group screen management: Supports management of up to 8 groups of screens, and each group of screens can customize the output resolution, making it easy to complete complex scene display control.
– Supports automatic brightness adjustment based on ambient light conditions, or manual adjustment according to presentation content requirements.
Download VW2 Brochure
Specs
| Model | VW2 | |
| CHASSIS SPECIFICATIONS | ||
| Chassis | 2U | |
| Maximum number of supported input cards | 3 | |
| Maximum number of supported input channels | Route 24 | |
| Maximum number of supported output cards | 4 sheets | |
| Maximum number of supported output network ports | Route 32 | |
| Maximum number of layers | 16 | |
| Input power | 100-240V~,50/60Hz,3-1.5A | |
| Power consumption of the whole machine | 120W | |
| Work Environment | 0~45℃,0%RH～80%RH,non-condensing | |
| Storage environment | -20℃~65℃,0%RH～95%RH,non-condensing | |
| Dimensions | 482.6mm×343mm×95mm(L×W×H) | |
| Packing size | 565mm×465mm×285mm (L×W×H) | |
| Net weight | 9Kg | |
| Gross weight | 10Kg | |

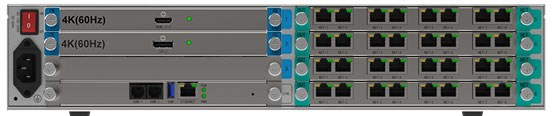

| CARD BOARD SPECIFICATIONS | ||
| HDMI 2.0 input board | · 1×HDMI 2.0 input board Number of input interfaces:1×HDMI 2.0(4096×2160@60Hz or 7680×1200@60Hz) | |
| DP1.2 input board | 1×DP1.2 input board Number of input interfaces:1×DP 1.2(4096×2160@60Hz or 7680×1200@60Hz) | |
| 8 port NET output board | 4×8 port NET output board Number of ouput interfaces:8-way RJ45 Gigabit network port The maximum supported resolution of a single card is 5.2 million pixels,and the maximum supported resolution of a single network port is 4,096 pixels. | |
| Control Board | 1x Control Board Number of ouput interfaces: o 1x COM-1:RS232 control port,can be connected to the central control system o 1x COM-2:RS232 control port,can be connected to the central control system;can be used as the COM-1 loop-out port o 1x USB:USB 3.0 port,used for system upgrades only and cannot be used to power other devices. o 1x ETHERNET:Gigabit Ethernet port,communication interface,connected to control computer,router or switch for Web control and pre-monitoring | |
