No.	Name	Item	Parameter
1	LCD Panel	BOE	Size	86″
			Brightness	500 nit
			Max.resolution	3840*2160
			Viewing Angle	178°(H),178°(V)
			Display Area	W1895.04*H1065.96mm
			Contrast Ratio	3000:1
			Refresh Rate	60Hz
			Ratio	16:9
			Lifetime	60,000 hours
2	Main Board	Interface	HDMI 2.03,USB 2.01,USB 3.01,RS232C1,RJ45*1,WIFI, Headphone output,VGA,Audio,AV,Y PB PR,TF card input
		Operating System	Android 14.0
3	Others	Power supply	AC100V~240V,50/60Hz
		Operating temperature	0℃~60℃
		Storage temperature	-20℃~60℃
		Power consumption	Max 350W,Avg 1W
		Installation	Wall-mounted

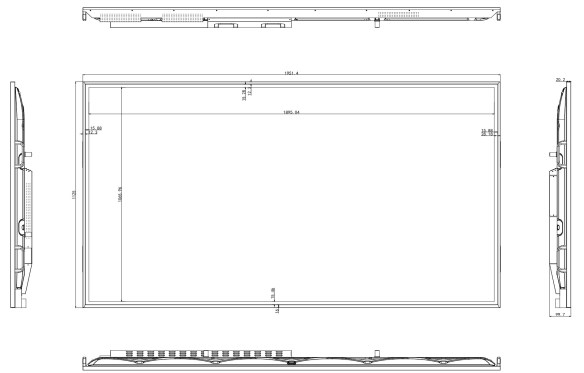

4	Cabinet	Dimention	1951.4(VV)×1125(H)×99.7(D)mm
		Weight	80kg

Features

Download VW-86M Brochure
