T-Shine

T-Shine is harmoniously matched with the glass. There are both rental and fixed screens, which can be customized to meet different customers’ needs;

Dual Use Ready For Any Stage Or Wall

Stable

The LED screen adopts a frame design, which makes the screen more sturdy and stable. It is not only able to realize hanging installation, so that users can freely choose the position suitable for the space to display, but also supports floor standing installation to adapt to different environments and needs.

Dual Use

This device can either be installed on a fixed screen or used as a rental display. Whether in commercial displays, event stages or daily office environments, it provides high-quality displays to meet the needs of different occasions for visual experience.

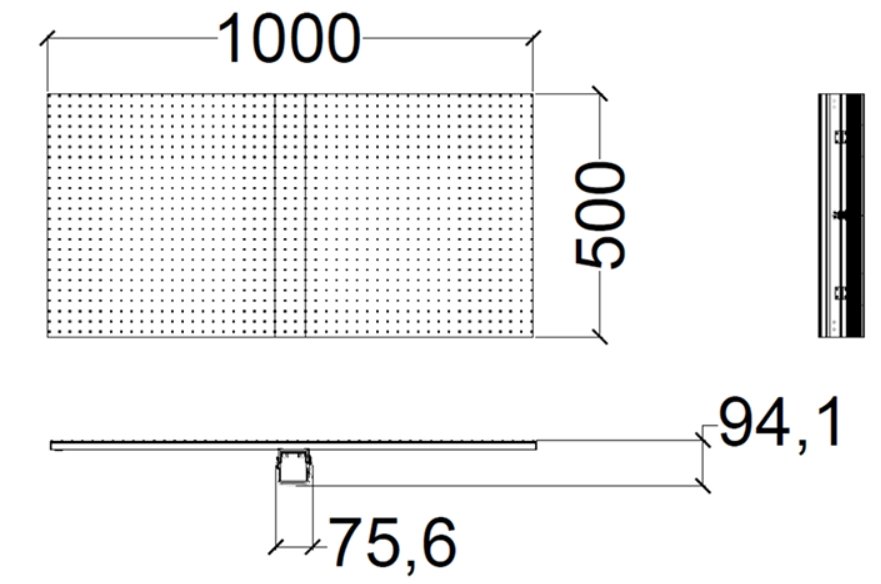

Ultra Slim & Light Weight

With a weight of only 9 kg per square meter, the individual boxes have a volume of only 4.5 kg (equivalent to 0.5 square meters). This lightweight design greatly reduces transportation costs, saving you valuable logistics dollars.

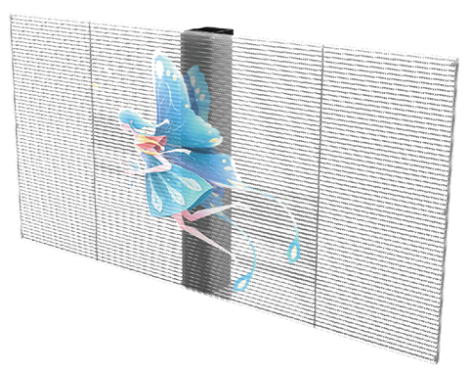

High Transparency

This LED display has a wide range of transparency rates, from 45% to 85%, to meet the needs of different users for transparency.

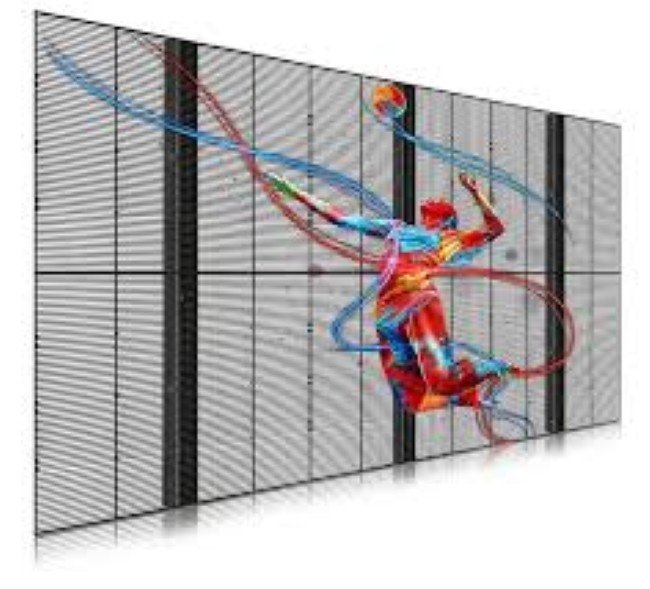

Customized Size

This LED screen adopts a modular design, and the size of its cabinet can be customized according to the specific conditions of the site, so as to allow users to make flexible adjustments according to the actual installation environment and needs.

Easy Installation And Maintenance

This LED screen enables a quick installation process, reducing tedious installation work and time costs. At the same time, its maintenance also becomes more efficient and convenient, greatly reducing the labor cost due to equipment failure.

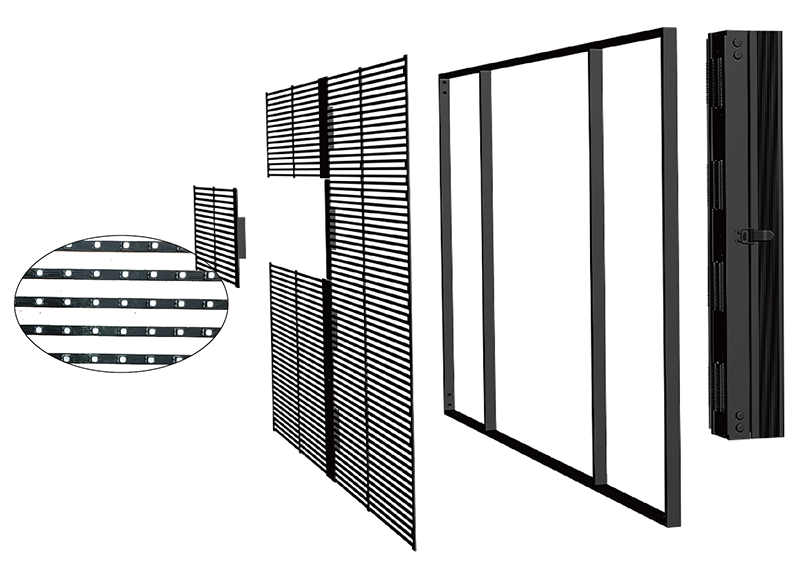

High Precision

The cables are not visible on the back of the LED screen, which not only makes the installation process easy and fast, but also avoids visual interference caused by the cables, and the whole structure is simple and intuitive.

Download T-Shine Brochure

Specs

Product Model:	TS1.9	TS2.8	TS3.9	TS5.2	TS7.8	TS10.4	TS15.6
Pixel Pitch:	1.98*3.9 mm	2.8*5.6 mm	3.9*7.8 mm	5.2*10.4 mm	7.8*7.8 mm	10.4*10.4 mm	15.625*15.625 mm
LED Type:	SMD1515; SMD1415	SMD2121; SMD1921	SMD2121; SMD1921	SMD2121; SMD1921	SMD2121; SMD1921	SMD2121; SMD1921	SMD2121; SMD1921
Cabinet Dimension:	1000x500x94 mm	1000x500x94 mm	1000x500x94 mm	1000x500x94 mm	1000x500x94 mm	1000x500x94 mm	1000x500x94 mm
Module Size:	500×125 mm	500×125 mm	500×125 mm	500×125 mm	500×125 mm	500×125 mm	500×125 mm
Cabinet Weight:	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg	4.5 kg
Cabinet Material:	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Driving Type:	1/16	1/11	1/16; 1/8		1/6	1/2	Static
Brightness:	800-5500 nits	800-5500 nits	800-5500 nits	800-5500 nits	800-5500 nits	800-5500 nits	800-5500 nits
Max/Avg Power:	400/140; 800/280 W/m²	400/140; 800/280 W/m²	400/140; 800/280 W/m²	400/140; 800/280 W/m²	400/140; 800/280 W/m²	400/140; 800/280 W/m²	400/140; 800/280 W/m²
Transparency Rate:	42%	45%	65%	75%	65%	75%	85%
Environment:	Indoor Use	Indoor Use	Indoor Use	Indoor Use	Indoor Use	Indoor Use	Indoor Use
IP Rating:	F: IP20, R: IP21	F: IP20, R: IP21	F:IP20, R: IP21	F: IP20, R: IP21	F:IP20, R: IP21	F: IP20, R: IP21	F: IP20, R: IP21
Refresh Rate:	>1920 Hz	>1920 Hz	>1920 Hz	>1920 Hz	>1920 Hz	>1920 Hz	>1920 Hz
Installation Type:	Mounting/Hanging	Mounting/Hanging	Mounting/Hanging	Mounting/Hanging	Mounting/Hanging	Mounting/Hanging	Mounting/Hanging
Gray Scale:	14 bit	14 bit	14 bit	14 bit	14 bit	14 bit	14 bit
Viewing Angle:	H:140°; V:140°	H:140°; V:140°	H:140°; V:140°	H:140°; V:140°	H:140°;V:140°	H:140°; V:140°	H:140°; V:140°
Operational Temp:	-20°C~+60℃	-20°C~+60℃	-20℃~+60℃	-20°C~+60℃	-20°C~+60℃	-20°C~+60℃	-20℃~+60℃
Operational Humidity:	10%-90% RH	10%~90% RH	10%-90% RH	10%-90% RH	10%-90% RH	10%-90% RH	10%-90% RH

T-Shine

Dual Use Ready For Any Stage Or Wall

Stable

Dual Use

Ultra Slim & Light Weight

High Transparency

Customized Size

Easy Installation And Maintenance

High Precision

Download T-Shine Brochure

Specs

T-Shine Key Features

Stable

Dual Use

Ultra Slim & Light Weight

High Transparency

Customized Size

Application fields

● Supermarket

● Airport advertising display

● Metro station

● Museum

● Convenience store

● Chain brand store

● Luxury brand store
