T-Paper
Innovative paper-thin and lightweight, seamlessly adheres to curved surfaces like a sticker; LEDs and drivers are deeply integrated to maintain 40%+ transparency at extremely thin thicknesses. UV-resistant material is fearless of outdoor aging, and the flexible substrate can be freely bent to fit the shaped space. Subvert the traditional installation mode, can be quickly completed without bracket deployment, for architectural curtain wall, window display gives invisible display technology.
Paper-thin & Flexible Transparent LED Display
Led & Driver IC Integrated
This T-Paper LED screen adopts self-developed technology to highly integrate the driver IC inside the LED wick, eliminating the traditional external wiring. The innovative architecture eliminates the risk of solder joint failure, significantly improves stability and reliability, significantly reduces maintenance costs, and realizes ultra-long service life in thin and light form.
Easy To Install
This LED screen requires no steel structure to support it, it just needs to be attached to the glass surface with a light touch, and can be lit up by connecting the cable. The revolutionary mounting method completely eliminates the need for traditional brackets and allows for minimal deployment.
High Transparency
Transparent screen realizes breakthrough 80%+ light transmittance, which is nearly invisible to fit the glass curtain wall. Ultra-high transparency in the playback of content while maintaining a transparent background, the perfect balance between dynamic display and natural lighting needs, redefining the new standard of window advertising

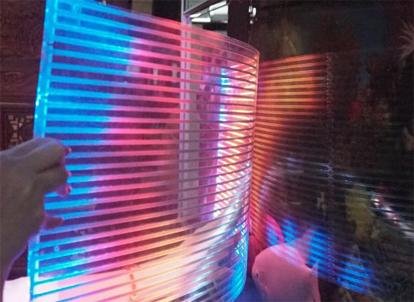

Flexible
This T-Paper breaks through the installation limitations and can be perfectly adhered to any flat/curved surface such as glass, metal, stone, etc. The self-adhesive substrate can be adapted to all kinds of architectural materials. It can be adapted to all kinds of building materials and can be invisibly deployed in elevators, columns, curved curtain walls and other scenes without a bracket.
Light & Thin
This T-Paper LED screen weighs only 3kg/㎡ and is 3mm thick, as light and thin as paper. The breakthrough lightweight design subverts the traditional LED form, while maintaining structural strength in the extreme thinness, significantly reducing the building load-bearing load, for the glass curtain wall, shaped space to provide a no-burden invisible display solutions.
Download T-Paper Brochure
Specs
| Product Model | TP6 | TP8 | TP10 |
| Pixel Pitch | 6*6mm | 8*8mm | 10*10mm |
| LED Type | SMD2121 | SMD2121 | SMD2121 |

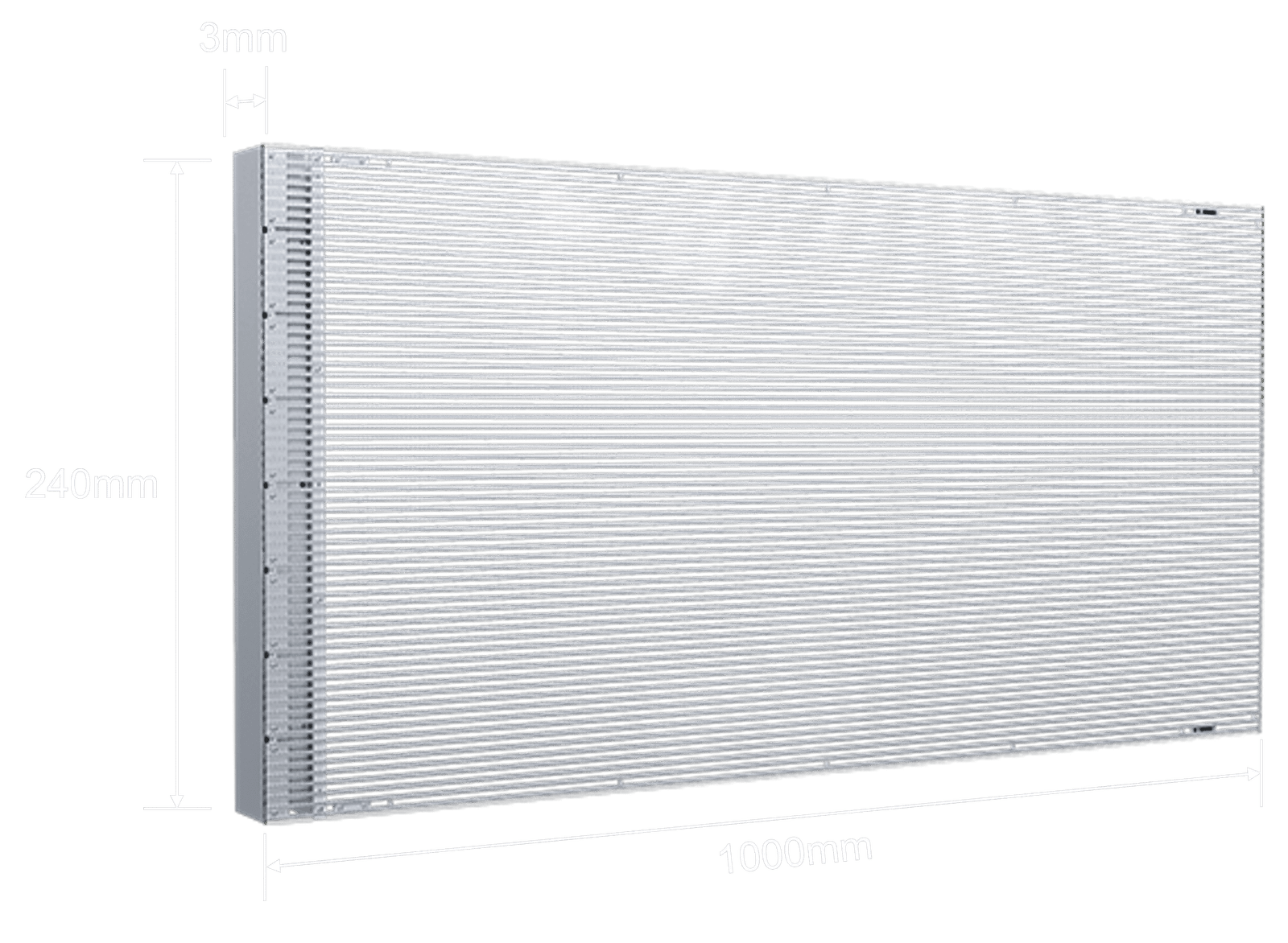

| Module Dimension(mm) | 1000*240*3mm | ||
| Weight | 3.5kg/panel | ||
| Brightness | 1500-3000nits | ||
| Transparency | 65% | 70% | 80% |
| Max/Avg Power(m²) | 800/280w/m² | ||
| IP Rating | IP43 | ||
T-Paper Key Features
Led And Driver IC Integrated
Easy To Install
High Transparency
Flexible
Light And Thin
Application fields
● Shop windows
● Smart shelves
● Museums
● Science and technology museums
● Cultural and tourist attractions
