OC31-Mantle
It fits freely with the wall and is not only waterproof and dustproof, but also has excellent light transmittance and high-brightness display effect, so that it can remain clearly visible even in a well-lit environment;
Eye-catching Transparent LED Screen Outdoor Advertising

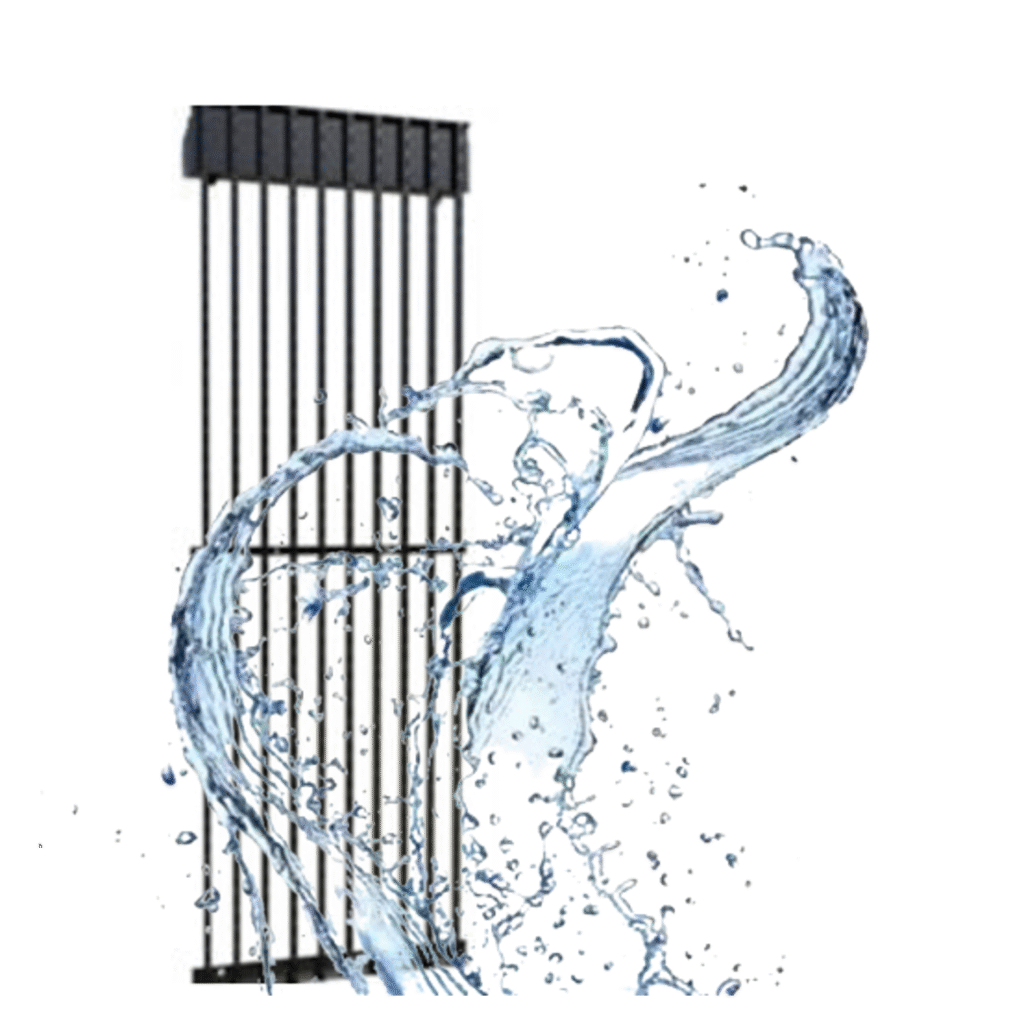

High Ingress Protection
This product is capable of operating in complex environments, and the IP67 certification signifies that the product has excellent water and dust resistance and remains stable even in harsh weather or industrial environments.
High Brightness & High Transparency
This LED screen can reach a brightness of 4,500-7,000nits, while the screen transparency can reach 69% to 85%, so when not working, we can see through the transparent screen to the back without blocking the light or creating a blind spot in the viewing angle.
Light Weight & Easy Installation&Maintenance
The LED screen is lightweight at around 8-13kg per square meter and supports quick installation and maintenance, reducing transport costs and labor costs at the same time.
Good Heat Dissipation
This product comes with a heatsink design aimed at improving its heat dissipation performance and ensuring that the heat generated can be effectively and quickly conducted away from the device under high-brightness working conditions, thus maintaining the stability and extending the service life of the device.
Independent Led Strip Design
The curtain LED cabinet is structured with a single light bar arranged independently of each other. This design allows each light bar to be controlled individually, enabling precise adjustment of light brightness and color. Users can easily plug and unplug the light bars according to their personal preference or environmental needs.
Download OC31-Mantle Brochure
Specs
| Product Model: | OC31 | OC3150 | OC3162 |
| Pixel Pitch: | 31.25 mm | 31.25/50 mm | 31.25/62.5 mm |
| LED Type: | DIP346 | DIP346 | DIP346 |
| Cabinet Dimension: | 500×1500 mm | 500×1500 mm | 500×1500 mm |
| LED Strip Quantity: | 16 pcs | 10 pcs | 8 pcs |
| Cabinet Weight: | 9.75 kg | 7.5 kg | 6 kg |
| Cabinet Material: | Aluminum | Aluminum | Aluminum |
| Driving Type: | Static | Static | Static |
| Brightness: | 7000 nits | 5500 nits | 4500 nits |
| Max/Avg Power: | 300/100 W/m² | 200/70 W/m² | 180/60 W/m² |
| Maintenance: | Front&Rear service | Front&Rear service | Front&Rear service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use |
| Transparency: | 69% | 80% | 85% |
| IP Rating: | IP67 | IP67 | IP67 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 16 bit | 16 bit | 16 bit |
| Viewing Angle: | H:100°; V:60° | H:100°; V:60° | H:100°; V:60° |
| Operational Temp: | -40’℃~+60℃ | -40℃~+60°C | -40℃℃~+60°℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH |
OC31-Mantle Key Features
High Ingress Protection
High Brightness & High Transparency
Light Weight & Easy Installation&Maintenance
Good Heat Dissipation
Independent Led Strip Design

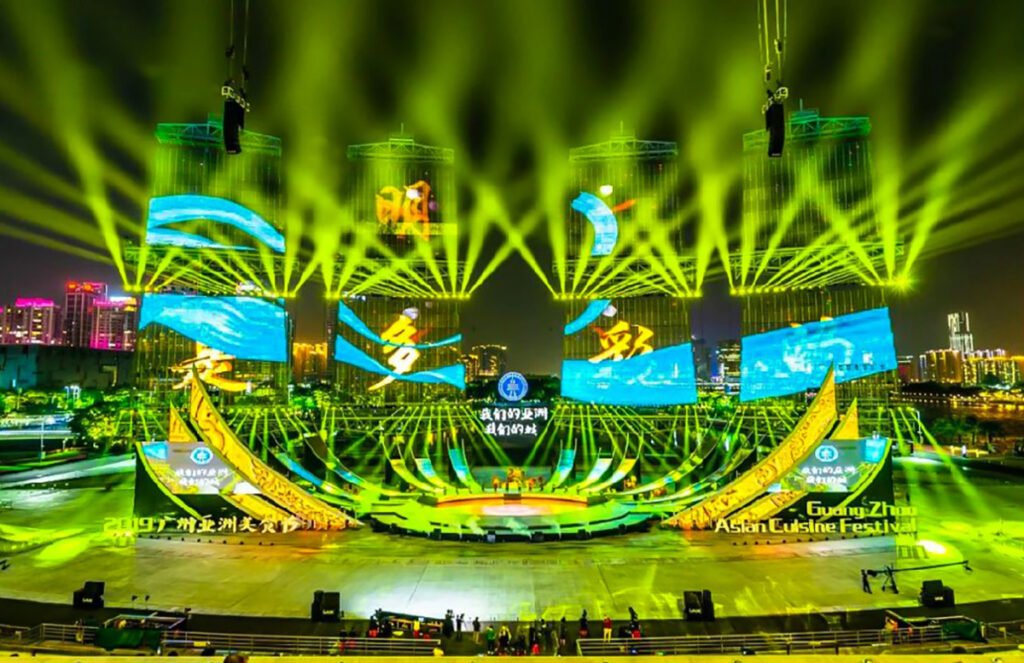

Application fields
● Entertainment venue
● Stage performance
● Luxury disco venue
● Fashion and art-related conferences
● Music nights
