Molyna

The breakthrough realizes truly smooth 90° corner, eliminating traditional splicing black lines, and the picture flows seamlessly like liquid metal. Adopting 375×500mm aviation-grade die-casting aluminum frame, it achieves the industry’s top splicing flatness through precision manufacturing process. The innovative soft mask fully protects the LEDs from collision, and the magnetic hard connection module and the pluggable power box realize second-level disassembly. The side locking system is intelligently compatible with all kinds of straight cabinets, freely constructing right-angle/U-shape/totem pole/cylinder and other three-dimensional shapes, creating a borderless vision of both art and technology for high-end commercial spaces.

90° Corner Screens For Creating A Flawless Immersive Visual Experience

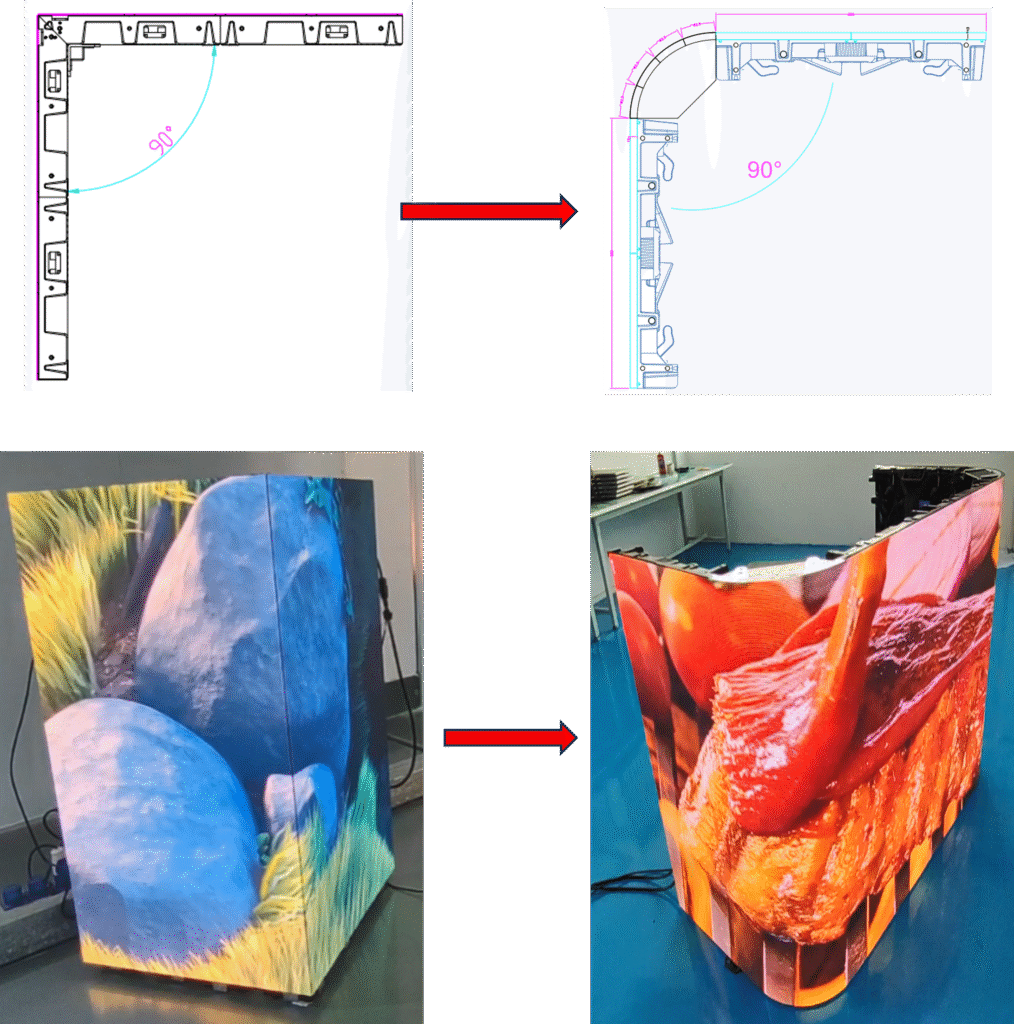

Smooth 90° Corner

Molyna breaks through the limitations of traditional splicing, realizing truly smooth corners and completely eliminating the black gaps and breaks of traditional L-shaped splicing. The seamless connection between the modules forms a continuous surface, and there is no visual split at the picture turn, perfectly presenting a coherent and realistic column display effect, creating a flawless immersive visual experience for high-end commercial spaces and art installations.

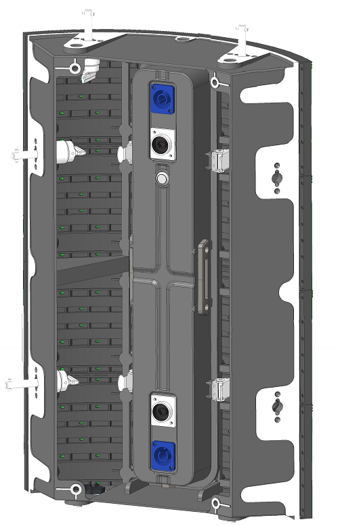

Die-casting Aluminum

Molyna adopts a 375×500mm die-cast aluminum frame to ensure that the modules fit tightly together. The modules are spliced with excellent flatness, providing a perfect and seamless display base for curved columns and meeting the stringent requirements for precision in high-end commercial spaces.

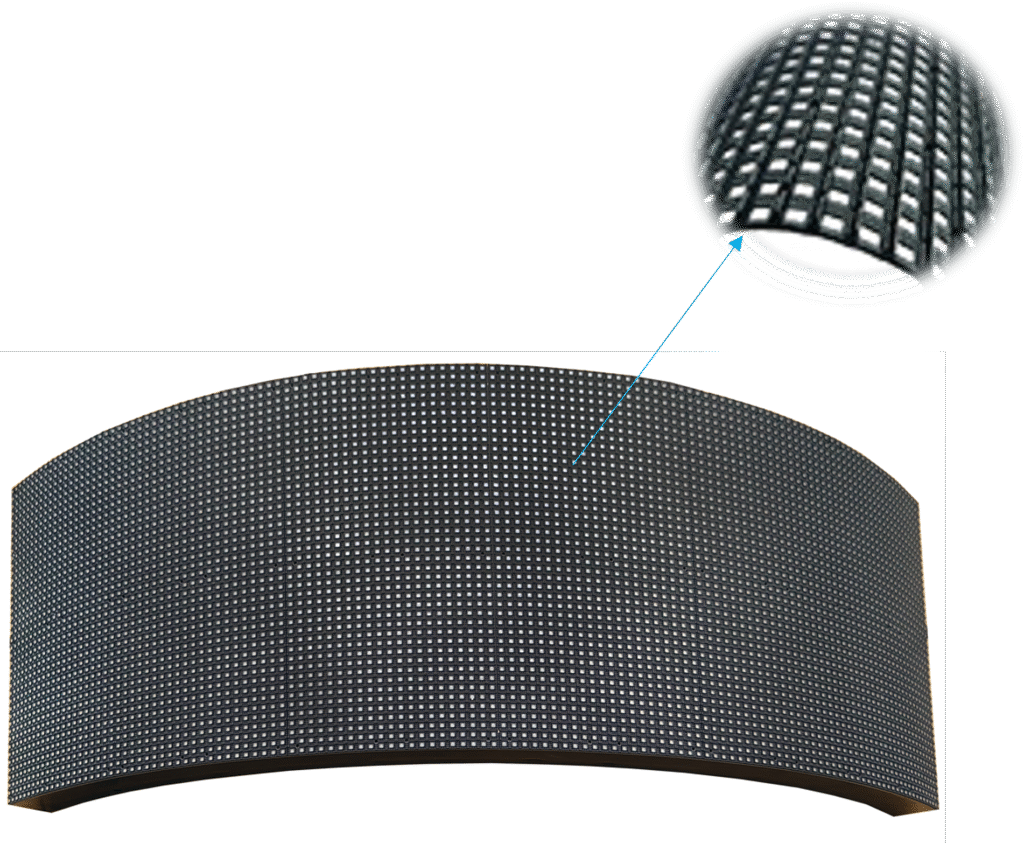

LED Protection

Molyna adopts high elasticity soft mask design, fully wrapped LED lamp beads, can effectively absorb external impact, when encountered with the collision deformation dispersion pressure, to eliminate lamp bead damage or personnel injury. Mask and curved screen body precision fit, in order to provide a full range of protection at the same time to maintain a pure picture without distortion, significantly reduce the shopping malls, showrooms and other high-traffic scenes of maintenance costs.

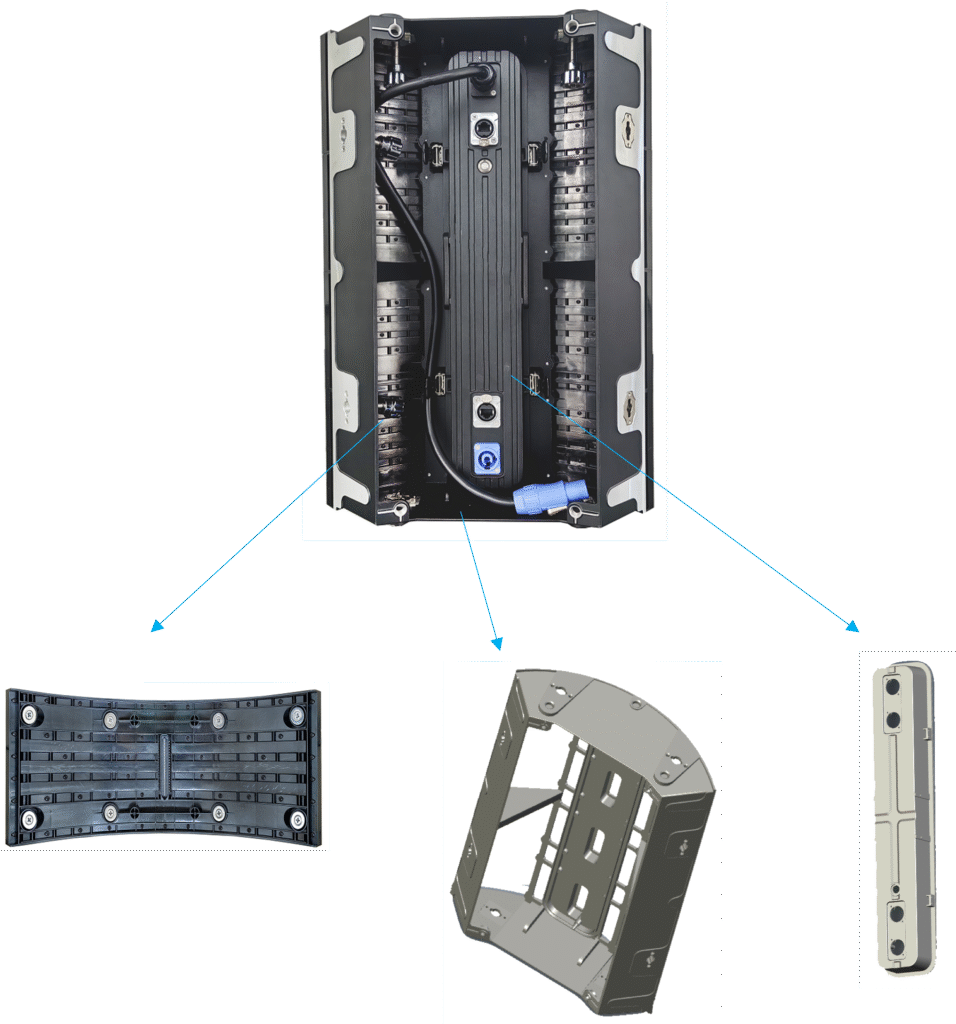

Quick Assembly

Molyna adopts magnetic hard connection module design, accurate positioning between modules through strong magnetic adsorption, combined with physical snap rigid locking, to realize the rapid assembly in seconds. Equipped with hot-swappable power supply box, it can be directly replaced without tools in case of failure, and quickly complete on-site maintenance. Dual quick release structure significantly reduces the installation and troubleshooting time, and ensures the continuous and stable operation of commercial complexes and other high-intensity use scenarios.

Super Compatibility

The side locking system of this LED screen adopts reconfigurable hole design, and supports multi-specification interface customization through modular locking hole array. Users can flexibly adjust the lock position and spacing according to project requirements, seamlessly compatible with various types of LED cabinets, to realize the rapid combination of cross-series products to expand, significantly improve the reuse rate of equipment and scene adaptability, to meet the diversified deployment needs of commercial space upgrading and transformation.

Download Molyna Brochure

Specs

Quartz Corner Cabinet Spec-375x500mm
Product	Model	Brightness (nits)	Pixel Pitch (mm)	Drive IC	Scan	Receiving card	LED type	Cabinet resolution(pixel)	Cabinet Size (mm)	Module resolution(pixel)	Module Size(mm)
Q1.95i	Indoor	>700nit	1.953	ICN2055	1/32	A5S / K5+	Kinglight SMD4IN1 (copper)	192×256	375×500	192×64	375×125
Q2.6i	Indoor	>800nit	2.6	ICN2055	1/32	A5S C/ K5+	Kinglight SMD4IN1 (copper)	144×192	375×500	144×48	375×125
Q2.97i	Indoor	>850nit	2.97	ICN1065	1/21	A5S / K5+	HS SMD1515 (High Quality Version) (Copper)	126×168	375×500	126×42	375×125
Q3.9i	Indoor	>850nit	3.91	ICN1065	1/16	A5S / K5+	HS SMD2020 (High Quality Version) (Copper)	96×128	375×500	96×32	375×125
Q2.97o	Outdoor	>4500nit	2.97	CFD455	1/21	A5S / K5+	Nationstar SMD1415 (Copper)	126×168	375×500	126×42	375×125
Q3.9o	Outdoor	>5000nit	3.91	CFD455	1/8	A5S / K5+	Nationstar SMD1415 (Copper)	96×128	375×500	96×32	375×125
Q4.8o	Outdoor	>5000nit	4.81	CFD455	1/13	A5S / K5+	Nationstar SMD1921 (Copper)	78×104	375×500	78×26	375×125

Molyna

90° Corner Screens For Creating A Flawless Immersive Visual Experience

Smooth 90° Corner

Die-casting Aluminum

LED Protection

Quick Assembly

Super Compatibility

Download Molyna Brochure

Specs

Molyna Key Features

Smooth 90° Corner

Die-casting Aluminum

LED Protection

Quick Assembly

Super Compatibility

Application fields

● Concerts

● TV stations

● Large-scale entertainment programs

● Commercial exhibitions

● Studios
