Item	P5.7	P6.67	P8	P10
Pixel Pitch	5.7mm	6.67mm	8mm	10mm
Module Size	480*320mm	480*320mm	480*320mm	480*320mm

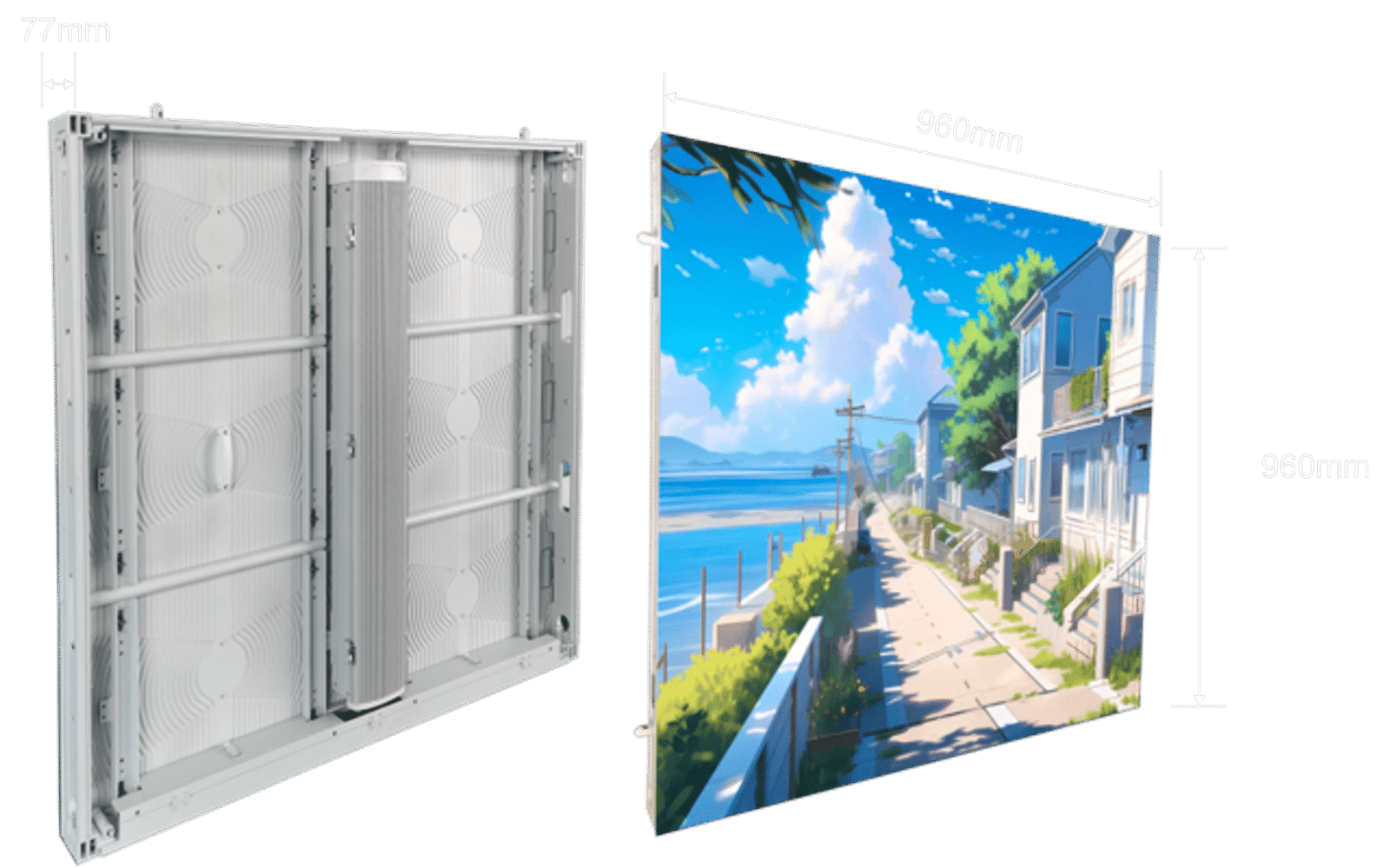

Cabinet Size	96096077mm	96096077mm	96096077mm	96096077mm
Working Voltage	3.2/4.2V	3.2/4.2V	3.2/4.2V	3.2/4.2V
Scan Mode	1/7	1/6	1/4	1/2
Cabinet Material	Aluminum Profile
Cabinet Weight	28kg/cabinet
Brightness	>6500nits
Power Consumption	650/228w/m2	540/2189w/m2	650/228w/m2	650/228w/m2
Maintenance	Front/Rear Service
IP Rating	IP65
Refresh Rate	≥3840Hz
Viewing Angle	H:140°; V:140°
Operational Temp	﹣20~50℃
Operational Humidity:	10%~90%RH

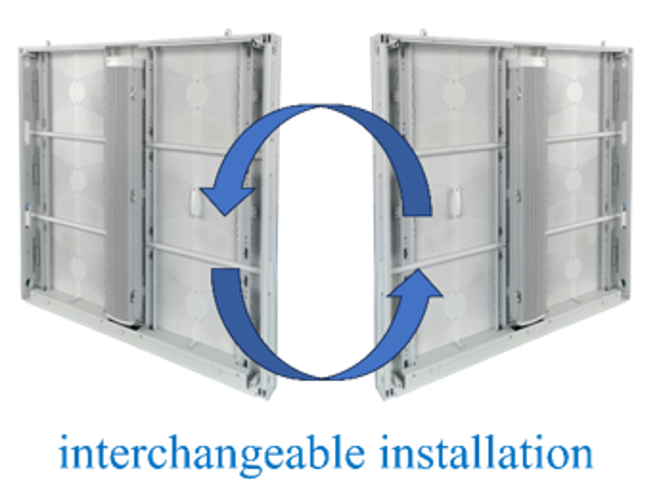

Outdoor Fixed LED Screen With Interchangeable Modules Installation

High Safety

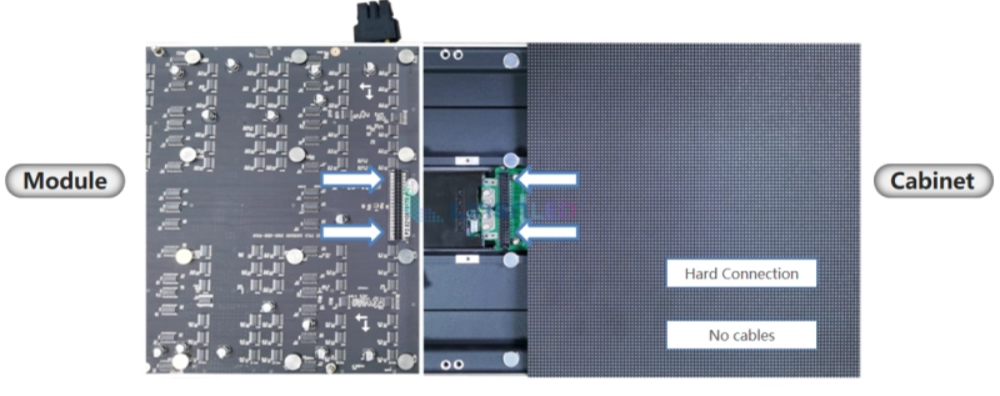

Hard Connection Design

High Performance

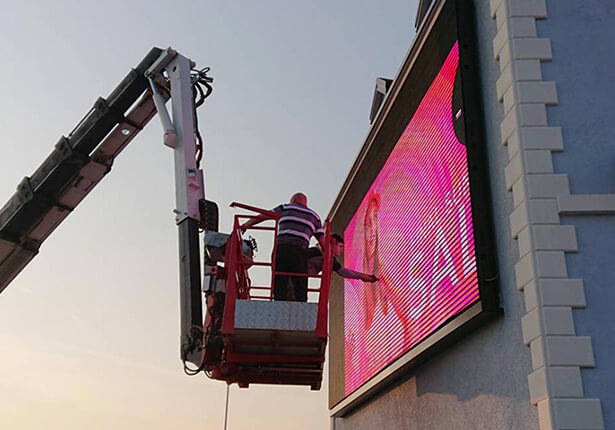

Front & Rear Maintenance

Low Maintenance Costs

Download FX-BRICK-96 Brochure

Specs

FX-BRICK-96 Key Features

High safety

Hard connection design & high stability

High performance

High convenience & High convenience

Low maintenance costs

Application fields

● Outdoor creative modeling

● Building entrance

● Park entrance

● Swimming pool

● Advertising billboard
