Item	P2.97	P3.91	P4.81	P6.25	P7.8	P10.4
Pixel Pitch	2.97mm	3.906mm	4.807mm	6.25mm	7.8125mm	10.417mm
Module Size	500*250mm	500*250mm	500*250mm	500*250mm	500*250mm	500*250mm

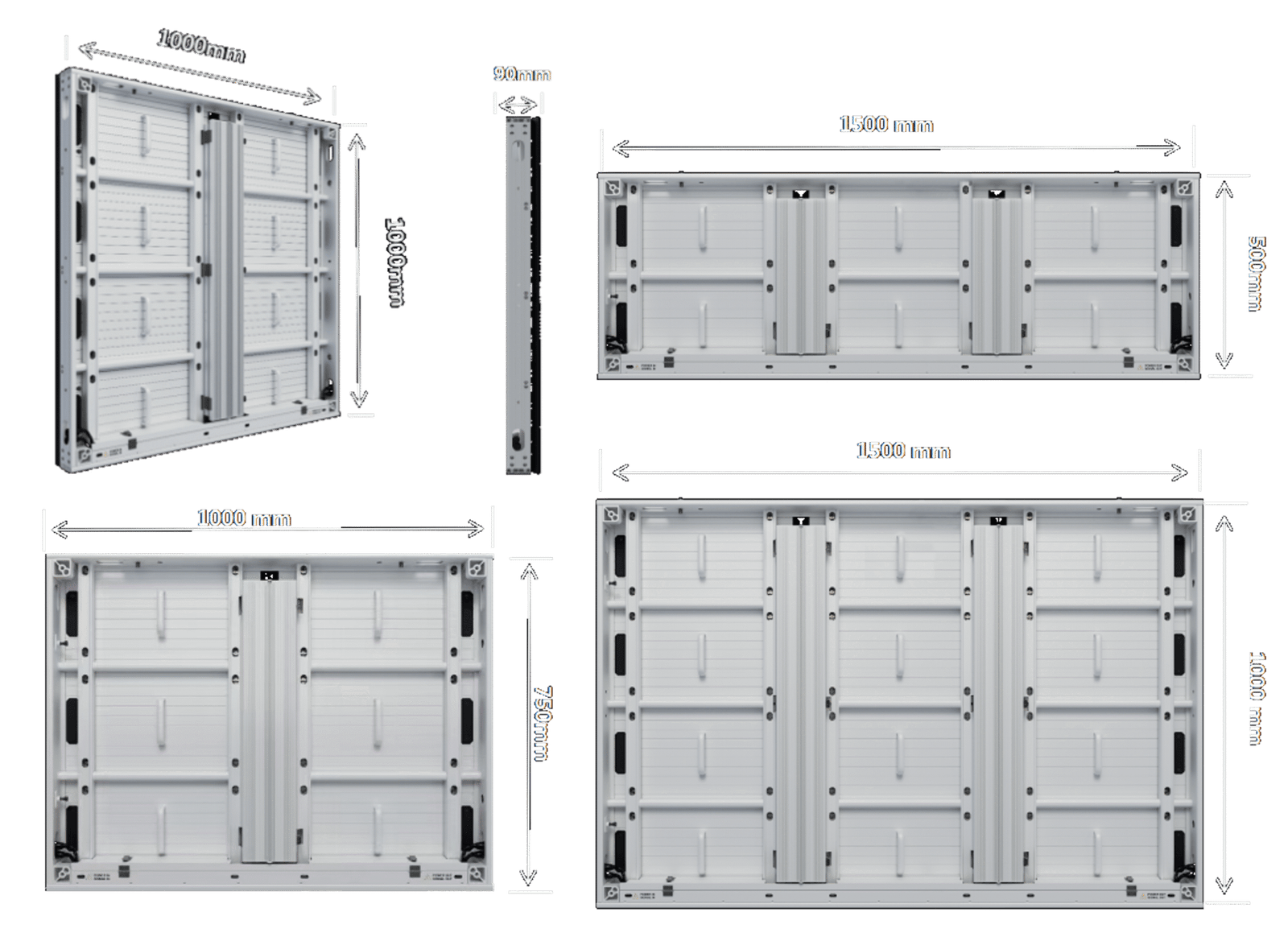

Cabinet Dimension	1000100090mm/100050090mm/100075090mm/1500100090mm/150050090mm
LED Type	SMD1415	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
Scan Mode	1/21	1/16;1/8	1/13;1/7	1/5	1/4	1/2
Cabinet Material	Aluminum Profile
Cabinet Weight	30kg/cabinet
Brightness	5000nits	4500/6000/9000nits	4500/6000/9000nits	6000/9000nits	6000/9000nits	6000/10000nits
Power Consumption	600/210w/m2	630/220w/m2	630/220w/m2	600/210w/m2	600/210w/m2	600/210w/m2
Maintenance	Front/Rear Service
IP Rating	IP65
Refresh Rate	≥3840Hz
Viewing Angle	H:140°; V:140°
Operational Temp	﹣20~50℃
Operational Humidity:	10%~90%RH

Eye-catching Outdoor Signage: 10K Nits & 2+1 Power

2+1 Power

Front & Rear Maintenance

IP65 Waterproof

Better Heat Dissipation

High Refresh

Download FX-BRICK-100 Brochure

Specs

FX-BRICK-100 Key Features

2+1 Power

Front and rear maintenance

IP65 Waterproof

Better heat dissipation

High refresh

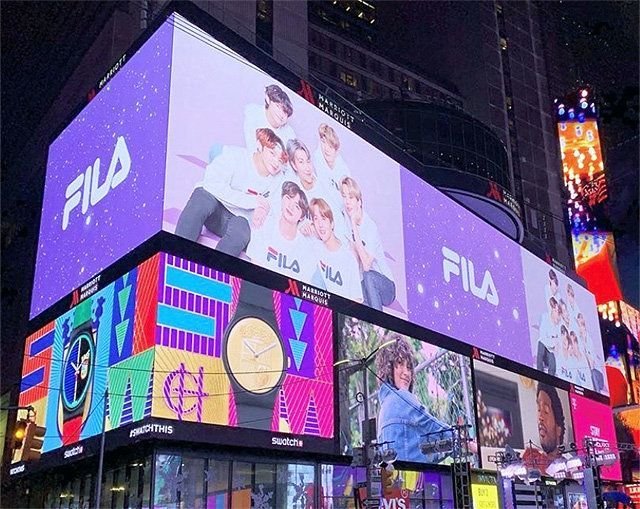

Application Fields

● Commercial display

● Shopping Mall

● Office Building

● Sports Events

● Train Station

● Pedestrian Street
