Product Model	FXBI2.5	FXBI3.75	FXBI5	FXBO2.5	FXBO3.75	FXBO5	FXBO7.5
Pixel Pitch	2.5mm	3.75mm	5mm	2.5mm	3.75mm	5mm	7.5mm
LED Type	SMD1515	SMD2020	SMD2020	SMD1415	SMD1921	SMD2727	SMD2727

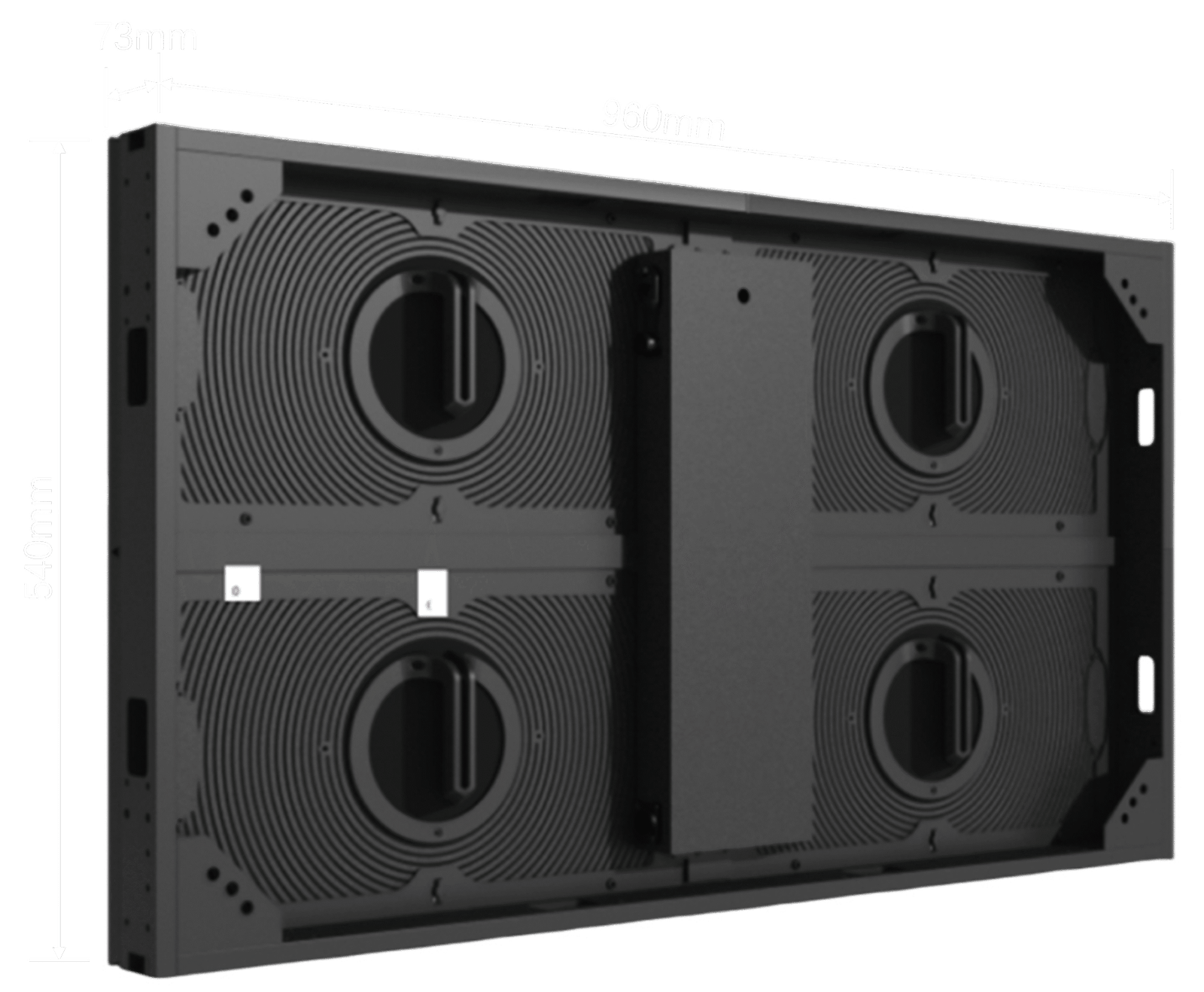

Cabinet Dimension(mm)	96054073mm
Module Size(mm)	480*270mm
Cabinet Weight(kg/panel)	13.5kg			16.5kg
Cabinet Material	Aluminium
Brightness	800nits	1000nits		4500nits	5000nits	7000nits
Contrast Ratio	5000：1
Max/Avg Power(m²)	560/194w/m²			660/230w/m²		792/276w/m²
IP Rating	IP42			IP65
Environment	Indoor			Outdoor
Horizontal Viewing Angle	140°
Vertical Viewing Angle	140°
Gray Level(bit)	14
Refresh Rate	≥3840Hz
Voltage	100 – 240 VAC, 50 ~ 60 Hz
Operate Temperature	-30°C~+50°C
Storage Temperature	-40°C~+80 °C
Operating Humidity	10~90% RH

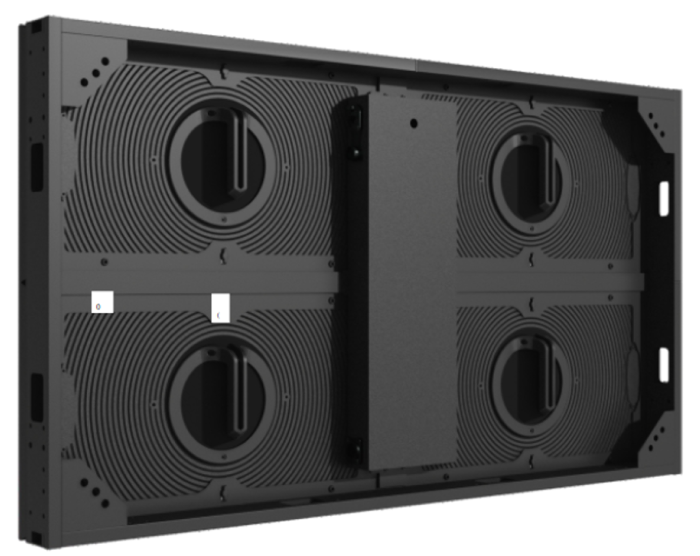

16:9 Gold Ratio: Magnetic-Locked & Precisely Spliced Displays

16:9 Ratio

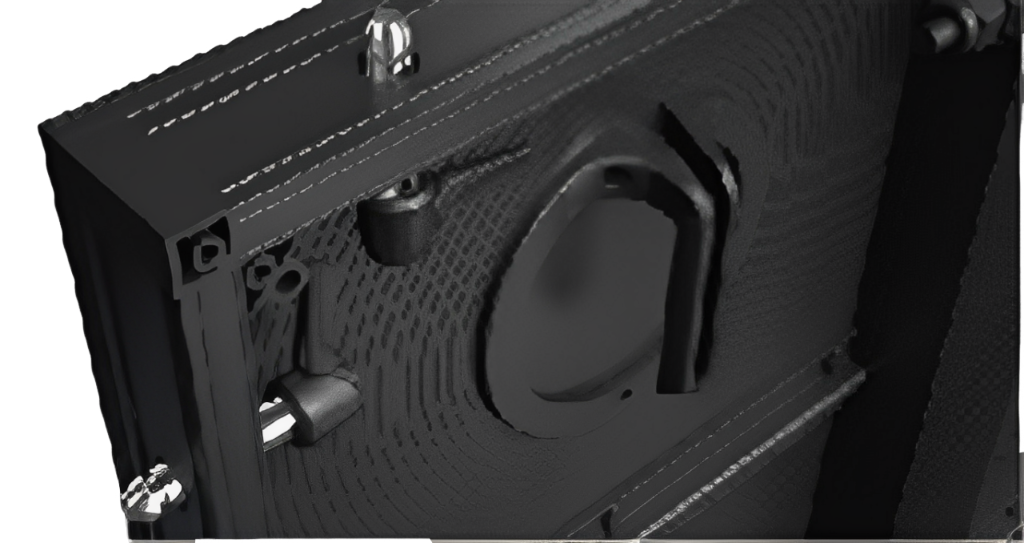

Module Magnet With Lock Design

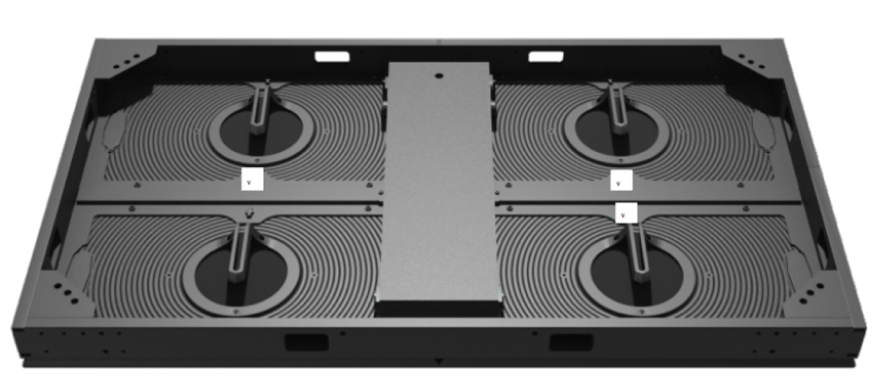

Thin & Light

High Precision

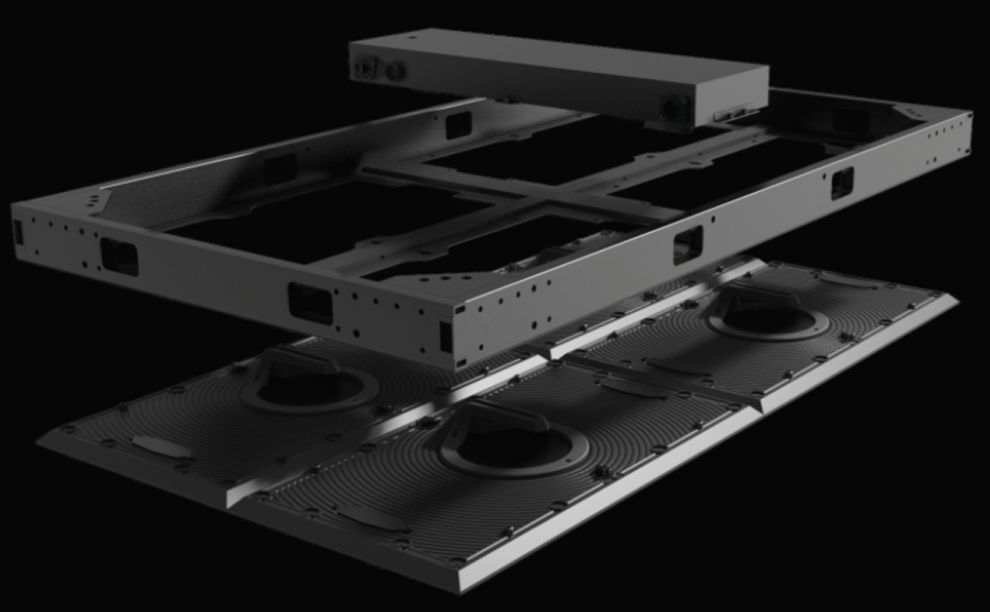

Modular Design

Download FX-Block Brochure

Specs

FX-Block Key Features

16:9 Ratio

Module Magnet With Lock Design

Thin & Light

High Precision

Modular design

Application fields

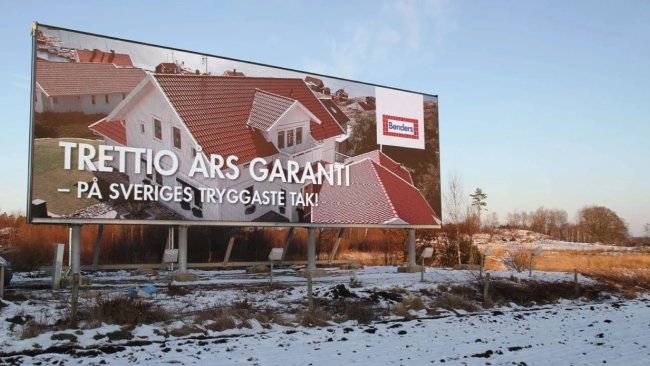

● Outdoor Advertising

● Public Information Displays

● Branding and Identity

● Live Events
