This LED display offers an excellent display with detailed picture quality and rich colors, comparable to a giant TV. It is designed with a 16:9 aspect ratio, providing users with a wide field of view and a comfortable viewing experience. In addition, it is equipped with an integrated control box, making operation more convenient. It also offers comprehensive front service to ensure that the equipment is always in the best condition

OFP

16:9 Golden Ratio LED Display with 600×337.5mm size, this product will be targeting small pixel pitch LED display market. A variety of outdoor pixel pitch can be met. For module, power supply and receiver card, easy to install and disassemble. The cabinet has good heat dissipation, no noise, energy saving and environmental protection. Excellent design, top quality, perfect visual performance, better color consistency. Outdoor installation, no need to reserve the maintenance channel. Front service installation to save labor and cost, and more. Widely used in commercial display, outdoor fixed adversting,auditorium, conference room,banquet,studio etc.

COB-MICA

COB-MICA stands out with its advanced full flip-chip COB process, delivering a sleek, light, and thin profile. Designed with a 16:9 ratio, it ensures a perfect fit for various applications. The front access feature simplifies maintenance, while the enhanced heat dissipation system extends its lifespan. With signal and power redundancy, it guarantees uninterrupted, reliable performance, making it an ideal choice for high-demand display scenarios.

COB-CrystalTV

This LED screen supports wireless screen sharing function, making it possible for multiple people to view content on the screen at the same time without complicated device connections. It is an all-in-one unit that integrates a variety of display and interactive functions in one, and can easily adapt to different application scenarios. Its 16:9 ratio is ideal for displaying a wide range of documents, charts and images, while easy control and remote operation allow users to interact with it in the most comfortable way. Whether for personal use or corporate presentations, this LED screen will meet your diverse needs

FX-BRICK-100

FX-BRICK-100 - installation display combines reliability and high performance. Its hub connection ensures low failure rates, while the 500 x 250mm aluminum backplate resists deformation and aids heat dissipation. With a max brightness of 10,000 nits, it stands out in any light. It offers front/rear maintenance, has an IP65 waterproof rating, and a 2+1 power connector to prevent overheating damage. Optional smart modules with common cathode/anode are available for added flexibility.

FX-BRICK-96

It can pass TUV 5VB fireproof certification, aluminum chassis + IP65 multi-layer waterproof build double protection. All-aluminum dense heat sink with partial voltage power supply design to achieve low temper ature and long life operation. Hard-wired architecture ensures physical stability. 10000cd/㎡ ultra-high brightness with 2.5mm edge height photomask improves contrast. Thickness is only 77mm/weight is 32kg/㎡, supports wall mounting and front/back maintenance, and the module left/right interchangeable design greatly reduces operation and maintenance cost.

Zirca

High-precision cast aluminum box is only 90mm thick/18kg (1000×500mm), 500×500 and 500×1000mm cabinets are free to mix and match shaped shapes, sharing the same type of mini control box. Push-button lock realizes 5 seconds fast disassembly and assembly, optional arc lock supports curved surface splicing. Fanless ≤ 40dB silent operation, point-by-point calibration to ensure pixel-level uniformity. 3840Hz high brush to eliminate 1/3000s shutter residual shadow, for stage performances, conferences, to provide a broadcaster-level visual base.

Onyxa

Innovative magnetic suction module supports full-front quick-mount maintenance, and fanless design ensures ultra-quiet operation of ≤40dB. Point-by-point calibration technology realizes pixel-level uniform display, and 3840Hz high brush eliminates 1/3000s shutter shooting residual shadow. Adaptable to P3.91-P10.41 multi-pitch indoor and outdoor scenes, providing zero interference and flicker-free visual feast for conference centers, stage performances and real estate showrooms.

umba

Ultra-thin 20mm chassis with 3840Hz+ high refresh rate, supports right angle/45° tangent splicing, P1.56/P1.95 with GOB protection technology, wall-mounted installation saves cost, front maintenance is more efficient. Designed for creative display: window screen, canopy screen, double-sided suspended screen and other scenes can present flicker-free dynamic images, adapting to advertising machines and square column screen and other diversified space needs.

FX-Block

Adopting the standard 16:9 golden ratio, perfectly adapting to mainstream video content. Magnetic locking design, the module between the strong magnetic positioning and mechanical locking double fixed, to achieve accurate splicing.

Smart Block

This LED screen realizes full front operation and no steel frame installation, the cable management system is integrated into the screen body. 45° tilt magnetic quick release design, the module is accurately adsorbed through the strong magnetic positioning, and maintenance can be completed without tools. The integrated body eliminates the traditional splicing structure, providing an immersive display experience with minimal deployment and millimeter-level precision for high-end retail window displays, airport information screens and other scenarios.

Zirca-G

Zirca-G series supports front/rear installation and full front maintenance, with ultra-strong magnetic unit modules. It has a standard 640mmx480mm size for strong cabinet compatibility, along with high refresh rate, high gray scale at low brightness, ultra-high contrast.

Zirca-T

Zirca-T series adopts high-strength, high-precision, lightweight and elegant die cast aluminum casing, which is easy to install, easy to maintain, with multiple spacing options, excellent image quality performance, and strong scalability.

OC50-Mantle

It fits freely with the wall and is not only waterproof and dustproof, but also has excellent light transmittance and high-brightness display effect, so that it can remain clearly visible even in a well-lit environment;

OC25-Mantle

OC31-Mantle

OC15-Mantle

T-shine

The LED screen is harmoniously matched with the glass. There are both rental and fixed screens, which can be customized to meet different customers' needs

T-fairy

The perfect combination of LED display and transparent glass shows a unique and harmonious beauty. Whether it is curved design or frameless installation, or customized according to customers' needs, every detail shows the charm of craftsmanship and professional customized service.

T-paper

Innovative paper-thin and lightweight, seamlessly adheres to curved surfaces like a sticker; LEDs and drivers are deeply integrated to maintain 40%+ transparency at extremely thin thicknesses. UV-resistant material is fearless of outdoor aging, and the flexible substrate can be freely bent to fit the shaped space. Subvert the traditional installation mode, can be quickly completed without bracket deployment, for architectural curtain wall, window display gives invisible display technology.

Clearnet

ClearNet is an innovative display solution designed for indoor applications that require a high level of visual engagement without compromising on aesthetics or space. This lightweight display system, weighing only 6kg per square meter, offers a perfect blend of technology and design.

Xaga Carbon Fiber

The ultimate in lightness and convenience, this LED screen's ultra-light weight reduces transportation difficulties. The modular design with quick disassembly and assembly function greatly improves the installation efficiency. Transparent and windproof, the screen optimizes the visual effect with a 45° bevel design, which is both aesthetically pleasing and practical, making it suitable for outdoor advertising, exhibitions, and other scenarios.

Q-1000

This LED floor screen focuses on practical performance: it supports quick installation and two-way front and rear maintenance, which is suitable for efficiency needs; the climbing function combined with the curved lock design can easily cope with changes in terrain and seamless splicing; the corner guard anti-knock structure strengthens durability, and the smooth corners and the locking core guarantee the precision of splicing. High-contrast images are suitable for creative scenarios, creating an efficient and reliable display solution specifically for LED flooring applications.

Q-500

Molyna

The breakthrough realizes truly smooth 90° corner, eliminating traditional splicing black lines, and the picture flows seamlessly like liquid metal. Adopting 375×500mm aviation-grade die-casting aluminum frame, it achieves the industry's top splicing flatness through precision manufacturing process. The innovative soft mask fully protects the LEDs from collision, and the magnetic hard connection module and the pluggable power box realize second-level disassembly. The side locking system is intelligently compatible with all kinds of straight cabinets, freely constructing right-angle/U-shape/totem pole/cylinder and other three-dimensional shapes, creating a borderless vision of both art and technology for high-end commercial spaces.

F-Dancer

This LED screen combines interactive experience with practical performance: the high load-bearing structure with waterproof and non-slip design is suitable for outdoor high-frequency use scenarios; the heat dissipation system ensures stable operation over a long period of time, and the installation is quick and saves labor costs. The interactive function supports real-time interaction, from commercial exhibitions to public space applications, creating an intelligent display solution with strong adaptability and reliability.

V-Poster

This Poster features a slim, easy-to-install design for flexible placement. Front maintenance ensures quick fixes. Multi-poster splicing creates seamless large walls. Wireless control via cloud/WiFi enables remote management. High-grade protective top cover resists impacts. Ideal for outdoor ads and indoor presentations, delivering reliable performance.

M-LEDnet

Architectural decorative grade LED display, both decorative and functional. It supports flexible curved surface installation, waterproof outdoor use and transparent screen body, and flexibly adapts to all kinds of architectural structures. Not only can it be perfectly integrated into the building appearance, but also can realize dynamic information display, which is the ideal display solution for modern buildings.

Trumpet

Adopting 2.5mm ultra-dense dot pitch, presenting delicate picture quality. The main structure contains 5010mm diameter horn-shaped display (25.33 square meters) and 1745mm diameter column display (22.63 square meters, height 6074mm), 8 kinds of customized modules to achieve multi-surface seamless splicing. The column design integrates sound and light technology, creating an immersive visual landmark for brand showrooms and commercial complexes.

Cone

Innovative round table shape LED screen (top diameter 2713mm/bottom diameter 2000mm/height 960mm), equipped with 2.5 dot pitch and 1.3 million pixels resolution. Three kinds of customized modules realize 140°-180° ultra-wide viewing angle coverage, suitable for column-shaped space art display. Curved seamless splicing technology ensures 360° viewing without dead angle, designed for high-end commercial atriums and immersive showrooms.

Hexagon

Inspired by honeycomb, the ultra-thin frameless units are free to combine multi-dimensional art installations. Support magnetic rotation splicing to create dome/prism/infinite extension wall. High brightness and wide viewing angle coverage. From art galleries to commercial landmarks, reconfigure the geometric narrative of light and shadow.

Obsira

This LED display features a lightweight, ultra-thin design for easy transport/installation and space saving. With a safe, solid structure and excellent heat dissipation, it ensures long-term stable operation. Quick assembly/disassembly boosts deployment efficiency, while an adjustable bracket meets diverse viewing needs. High-contrast, high-brightness visuals offer clear, colorful images with energy-saving features. Supporting HD detail display, it suits sports events, large-scale activities, venue guidance, and training scenarios.

Model	P0.7	P0.9	P1.25	P1.56
Pixel Pitch	0.78mm	0.9375mm	1.25mm	1.56mm
LED Type	Flip-COB(common cathode)

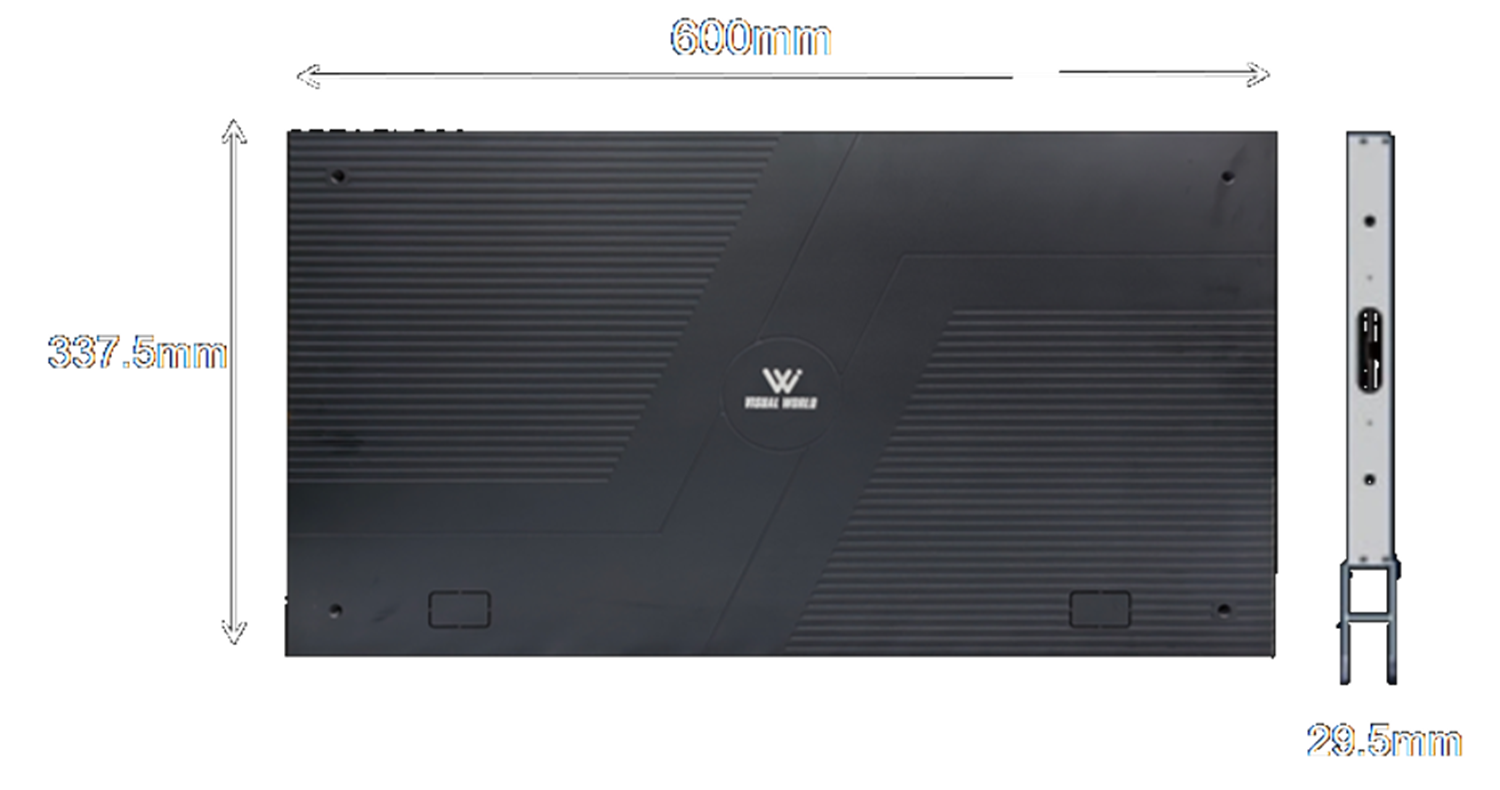

Cabinet Dimension(mm)	600337.529.7
Cabinet Resolution	768*432	640*360	480*270	384*216
Module Size(mm)	150×168.75
Cabinet Weight	4kg
Cabinet Material	Die-casting Aluminum
Driving Type	1/36	1/54 or 1/36	1/60 or 1/27	1/48
maintenance	Front service
Brightness	600~1500nits	600~800/1500nits	600~800/1500nits	600~800nits
Max Power	396W/m²	380/363W/m²	300/403W/m²	300W/m²
Avg Power	132W/m²	127/121W/m²	110/134W/m²	110W/m²
IP Rating	Front: IP54 Rear: IP30
Refresh Rate	>3840Hz
Installation Type	Mounting/Hanging/Stacking
Gray Scale	16bit
Viewing Angle	H:170°V:170°
Operational Temp	-20℃~+50℃
Operational Humidity	10%-90%RH

COB Technology - Top Packaging Meets Ultra-Precision Vision

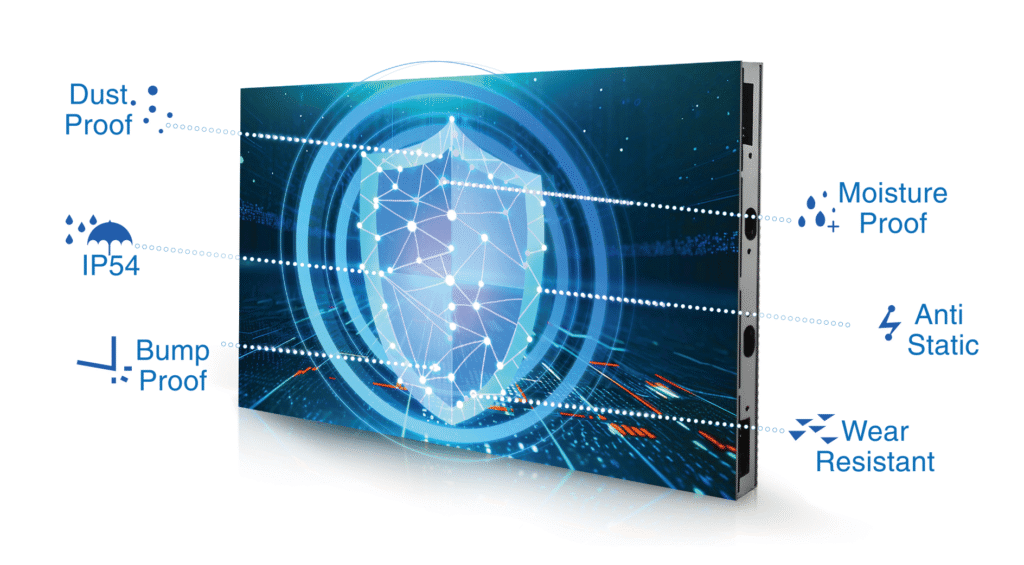

Full Flip-chip COB Process

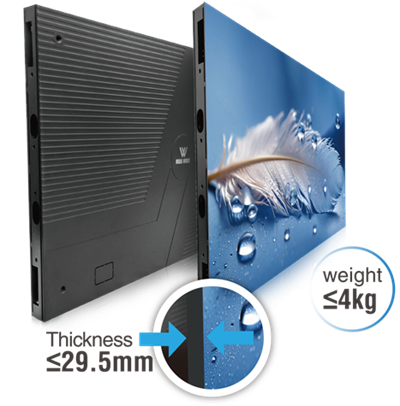

Light & Thin

16:9 Ratio

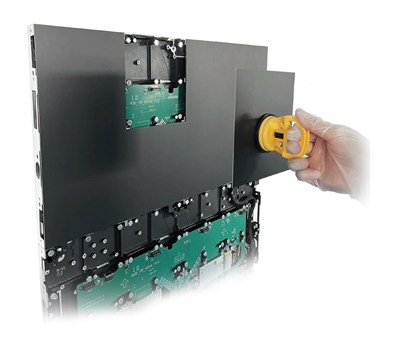

Front Access

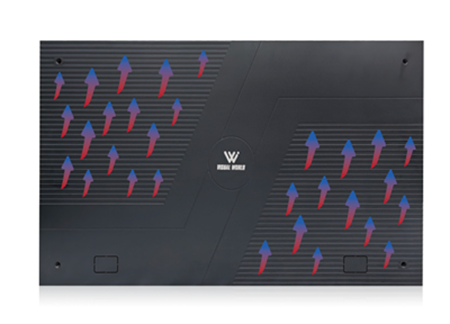

Better Heat Dissipation Longer Lifetime

Signal & Power Redundancy

Download COB-MICA Brochure

Specs

COB-MICA Key Features

Full Flip-chip COB Process

Light & Thin

16:9 Ratio

Front Access

Better Heat Dissipation Longer Lifetime

Application Fields

● Command and dispatch center

● Visual data center

● High-end commercial display

● Meeting application

● Home video display

● Virtual display
